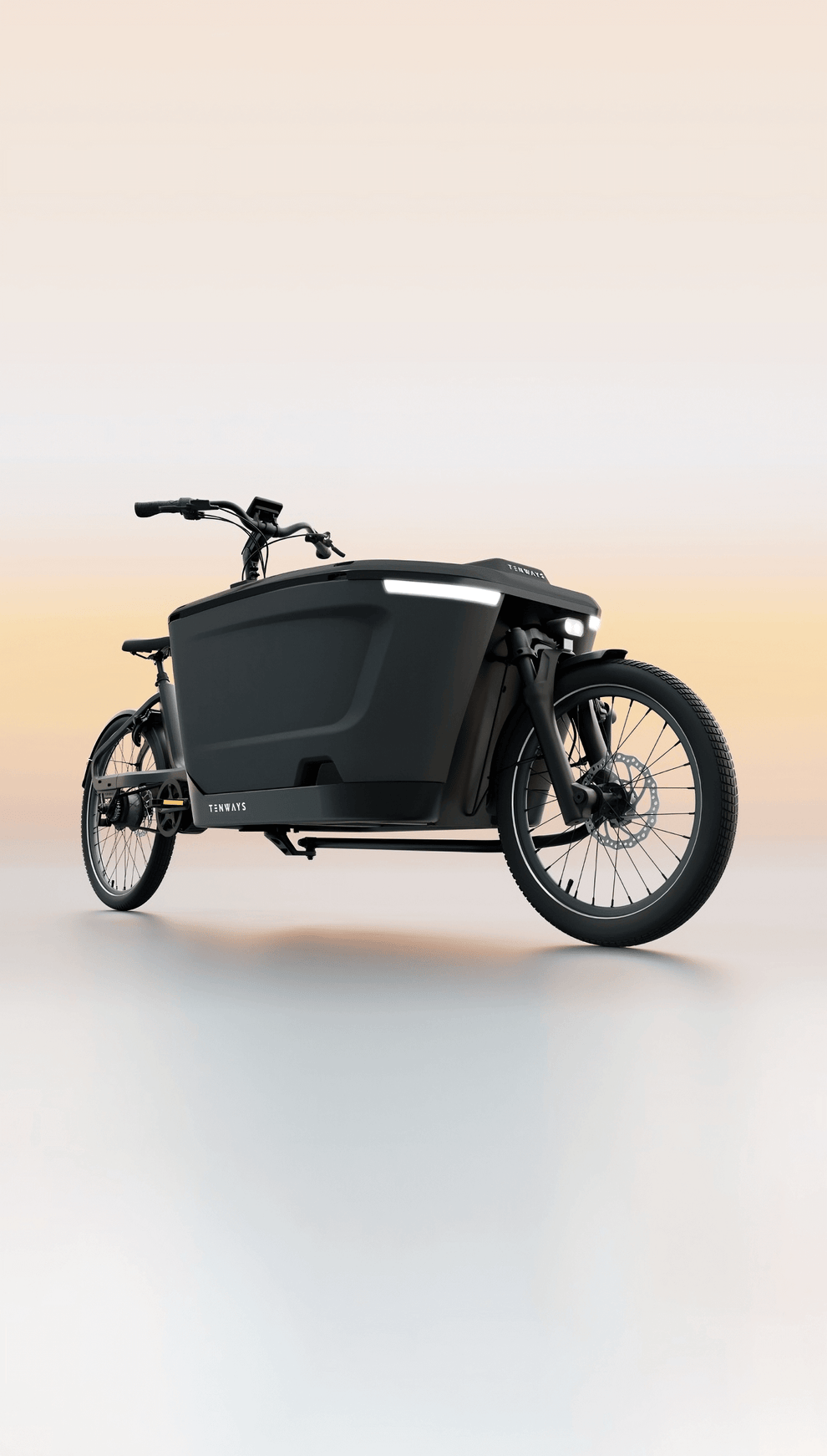

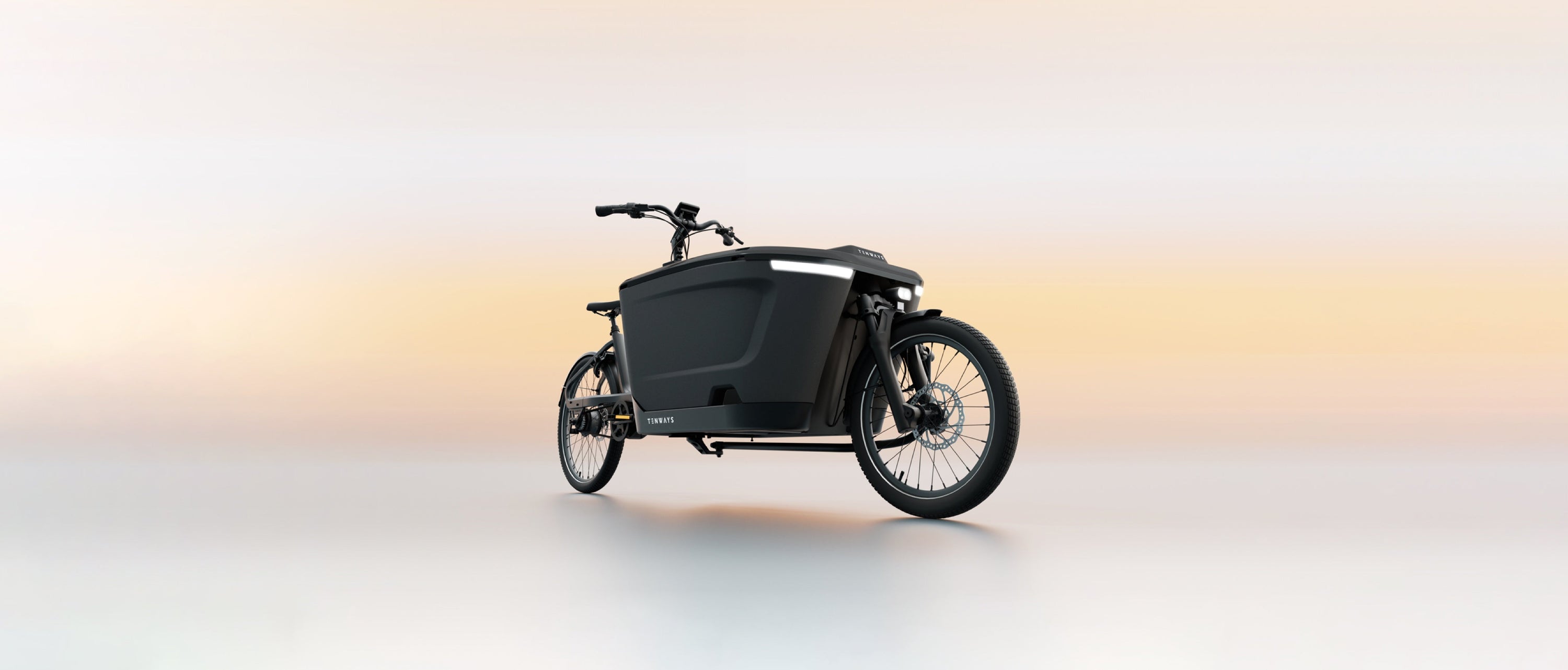

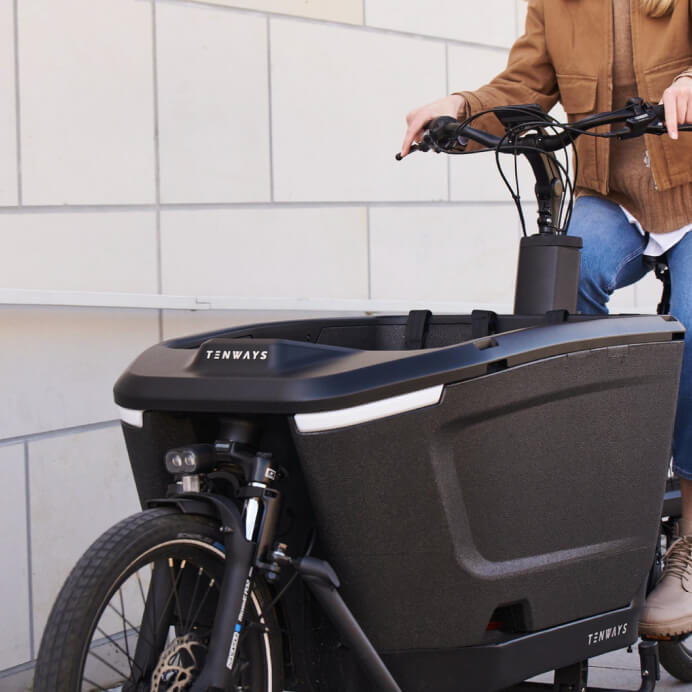

With an extra-large cargo box and a host of ergonomic features, it is the best travel companion to carry your little ones through life's little adventures.
Ideal for helping parents manage daily life while feeling great. This eye-catcher is built with attention to the finest details.
No wires or bulky components in view, just clean lines and sophisticated design principles for a modern, polished appearance.
2 different colored box covers to match the style of the driver and passengers. In addition to the standard black color, an extra green cover is included with your order.
Extremely durable, maintenance and stress-free, for long-lasting cycling pleasure.

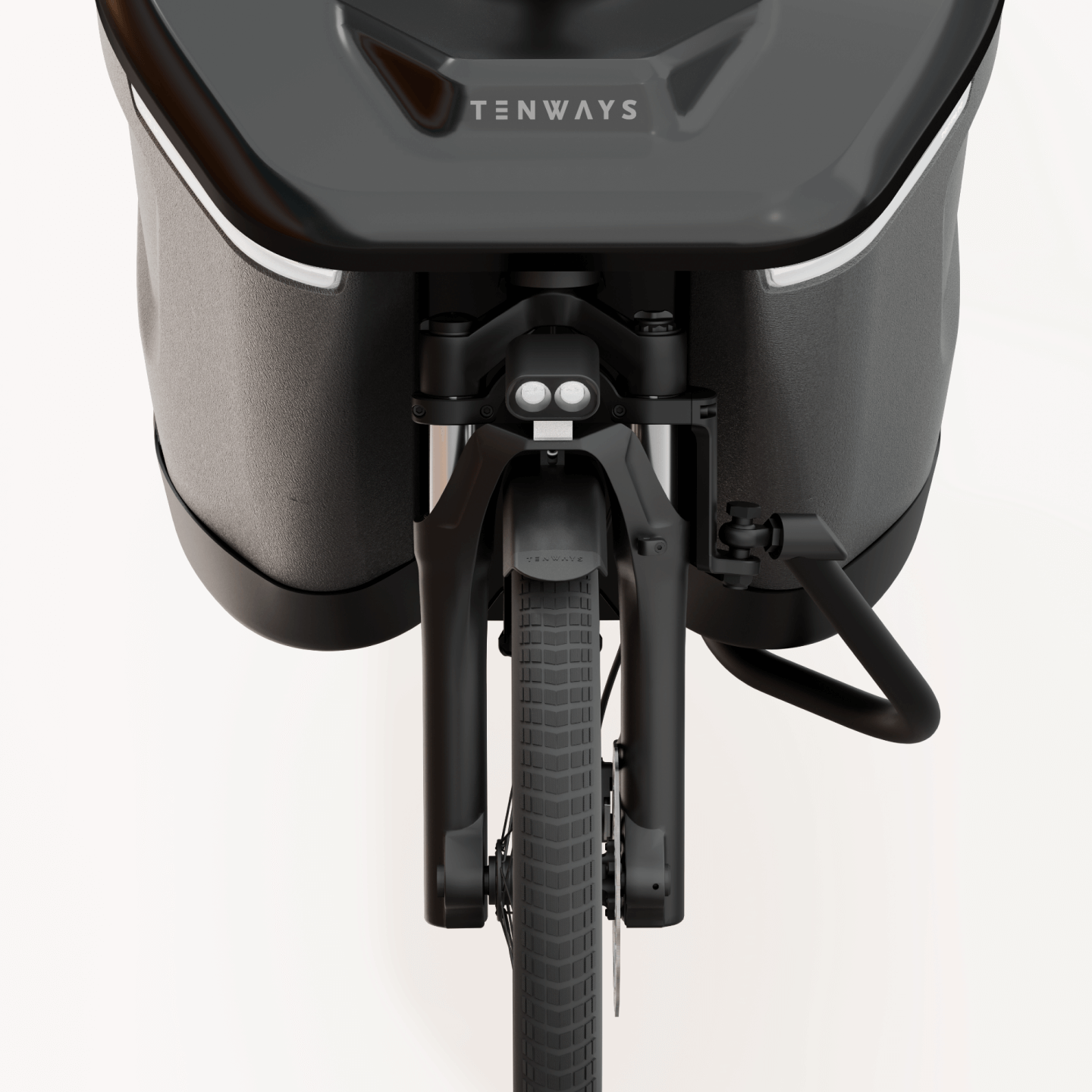

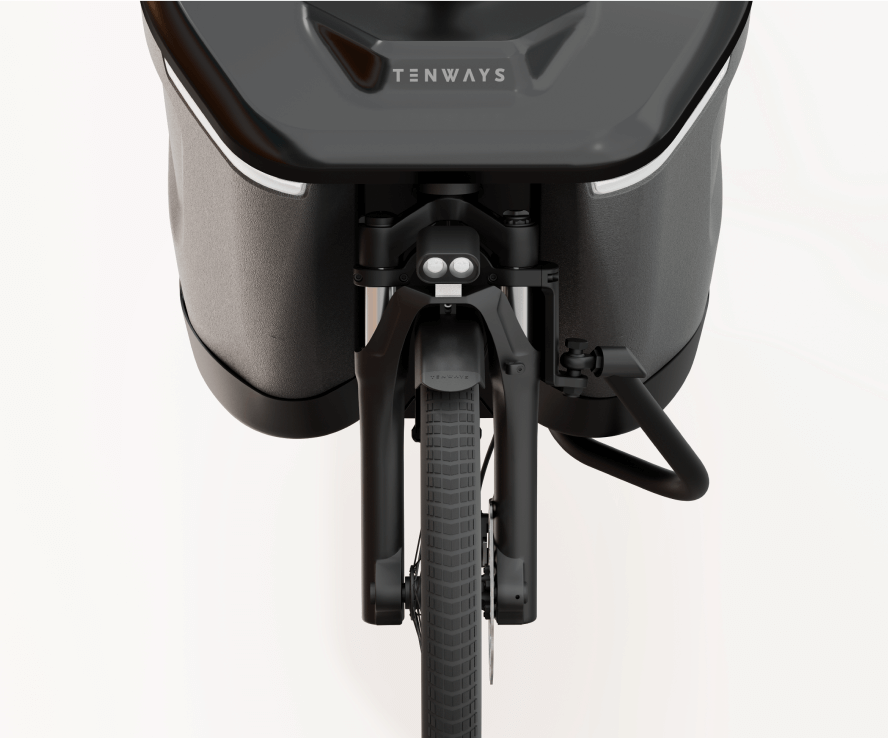

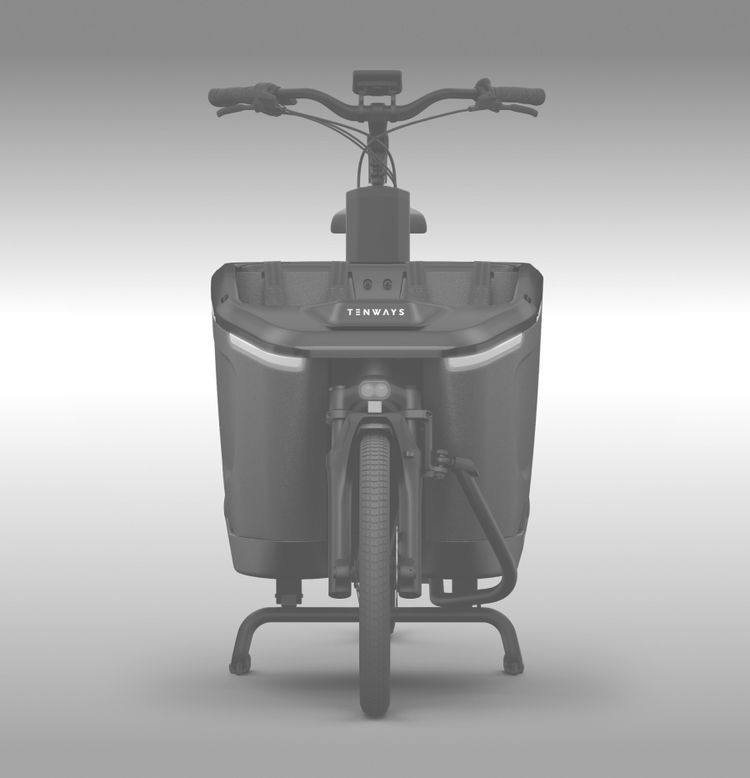

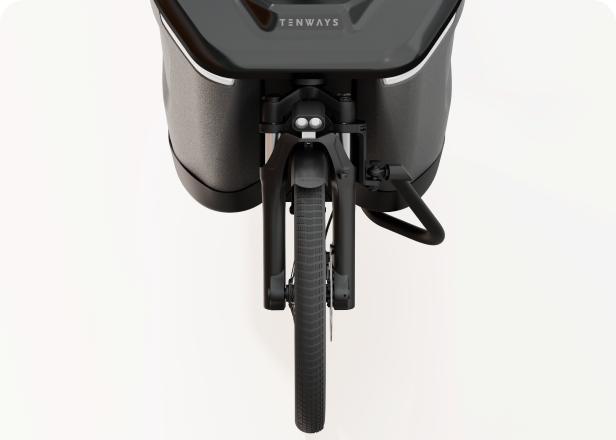

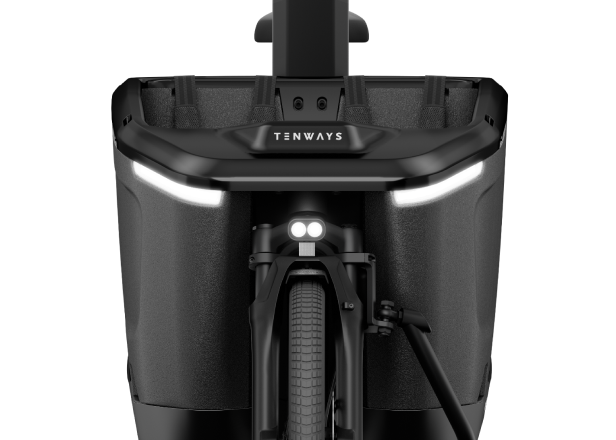

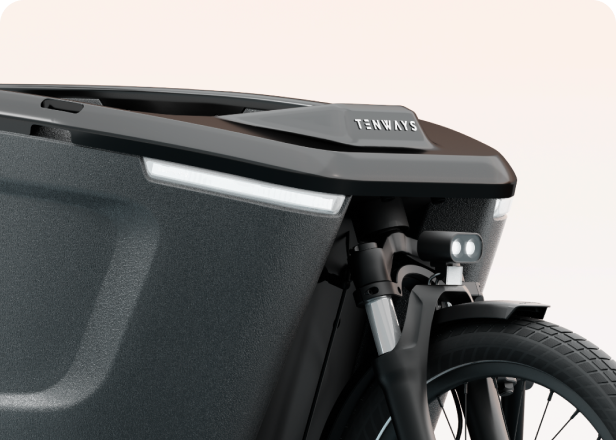

Sleek and distinctive EV-style lights to protect and set the tone for fun, stylish rides.

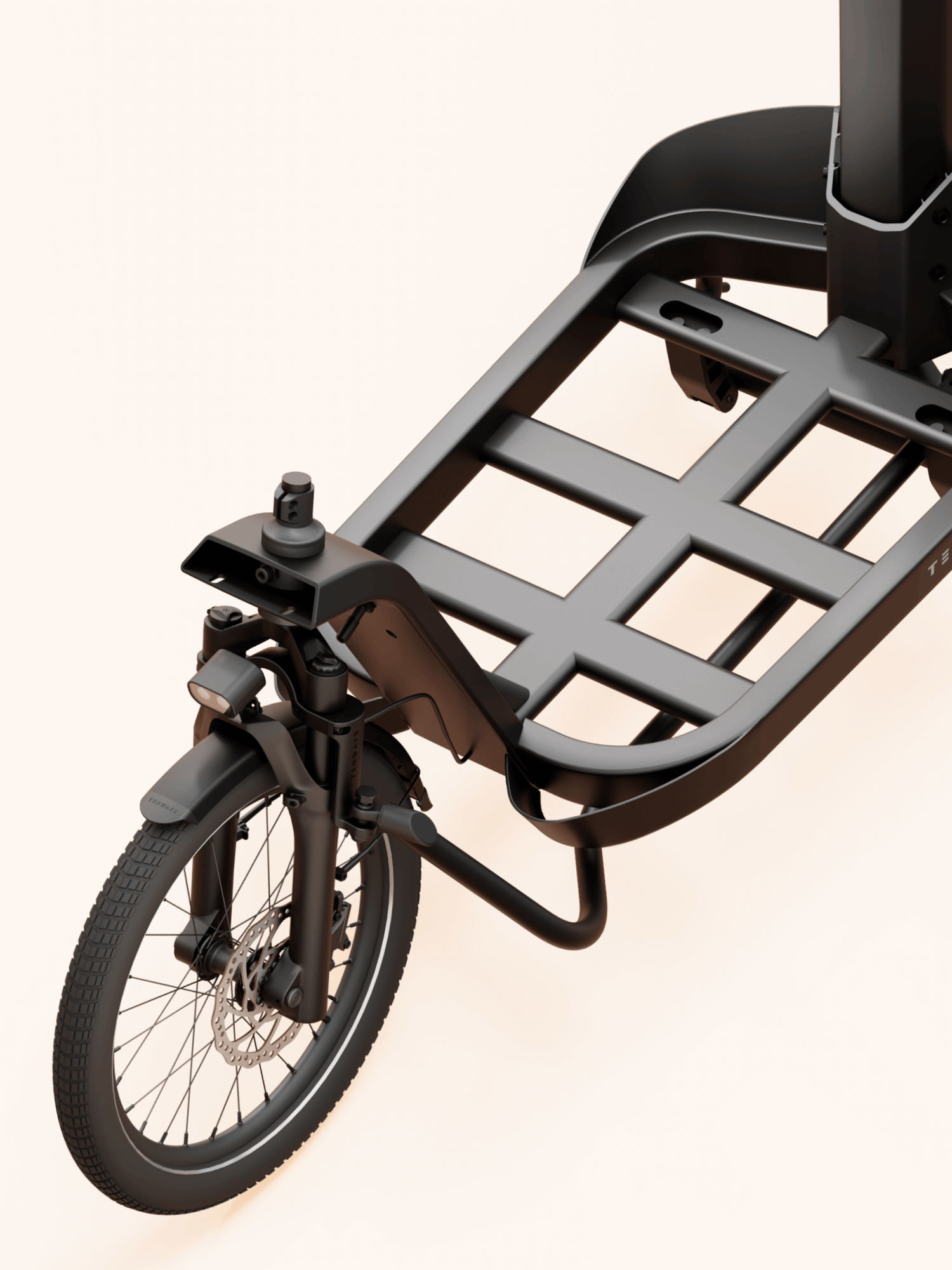

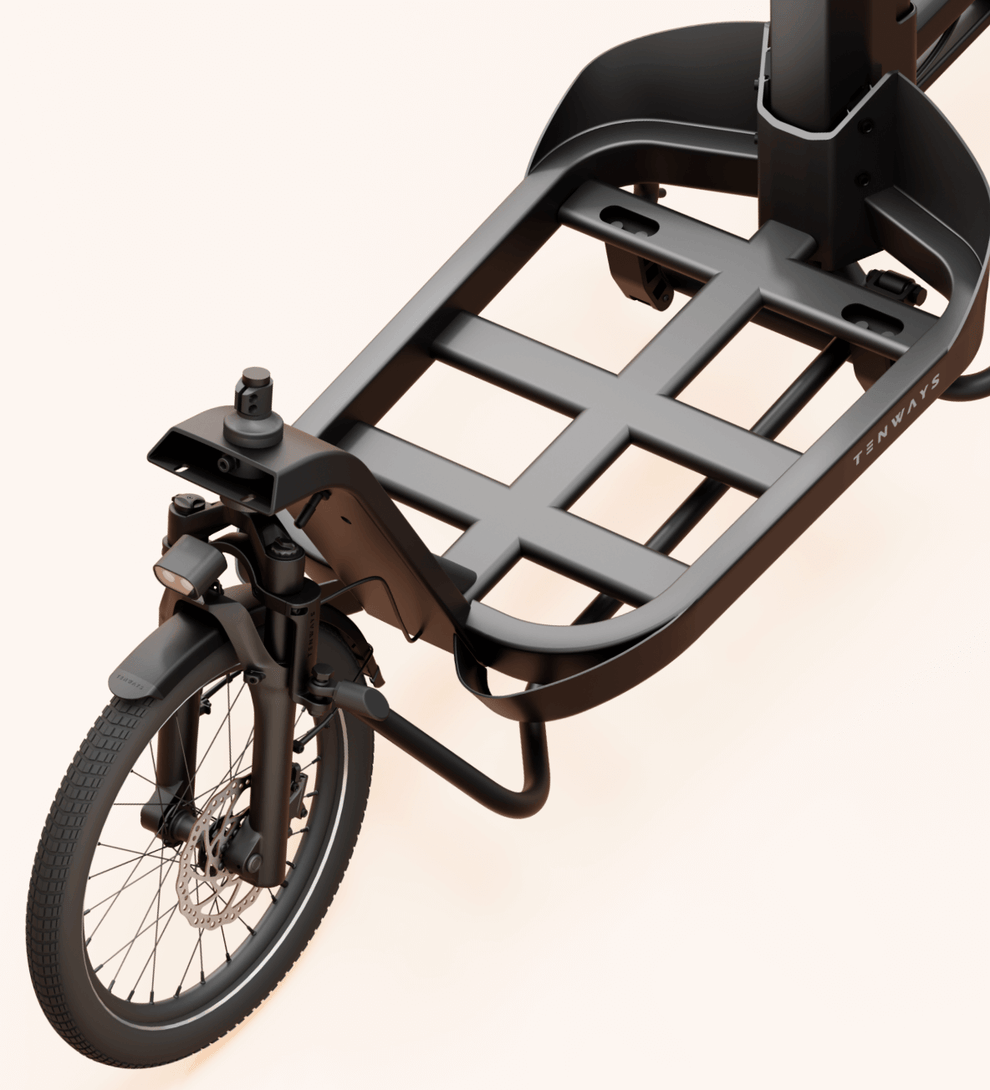

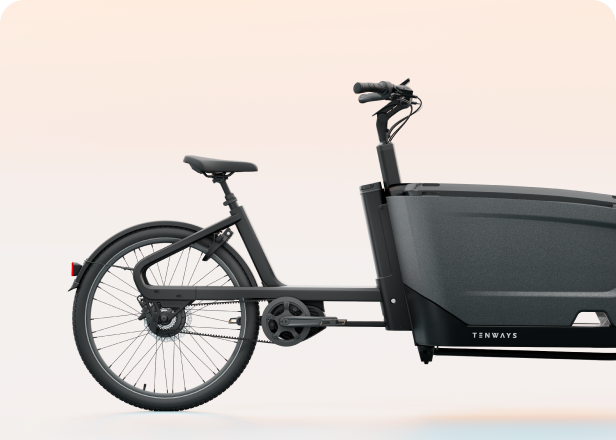

A sleek frame design for frequent and easy hopping on and off the bike in any outfit.

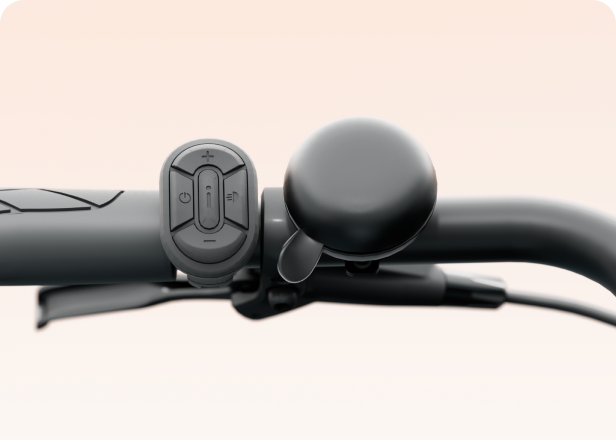

A soothing sound that calmly alerts pedestrians without disturbing your happy passengers.

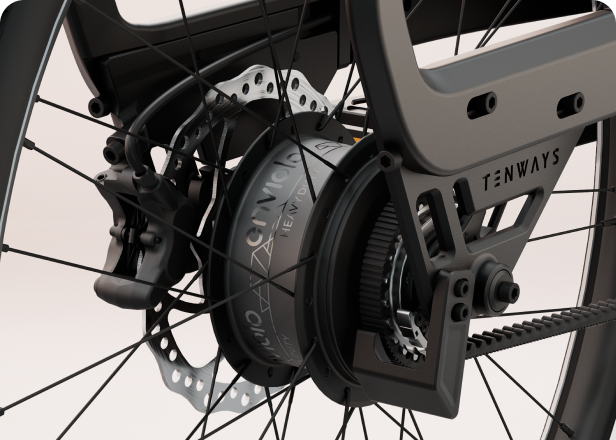

Effortless gear shifting, allowing you to simply enjoy the ride.
Effortless gear shifting, allowing you to simply enjoy the ride.

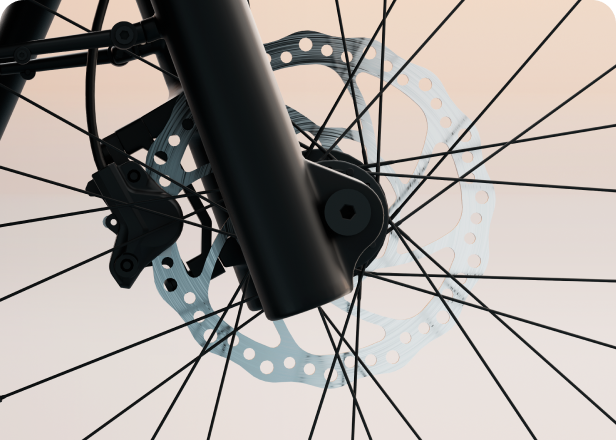

Super-reliable stopping power with minimal maintenance needed.

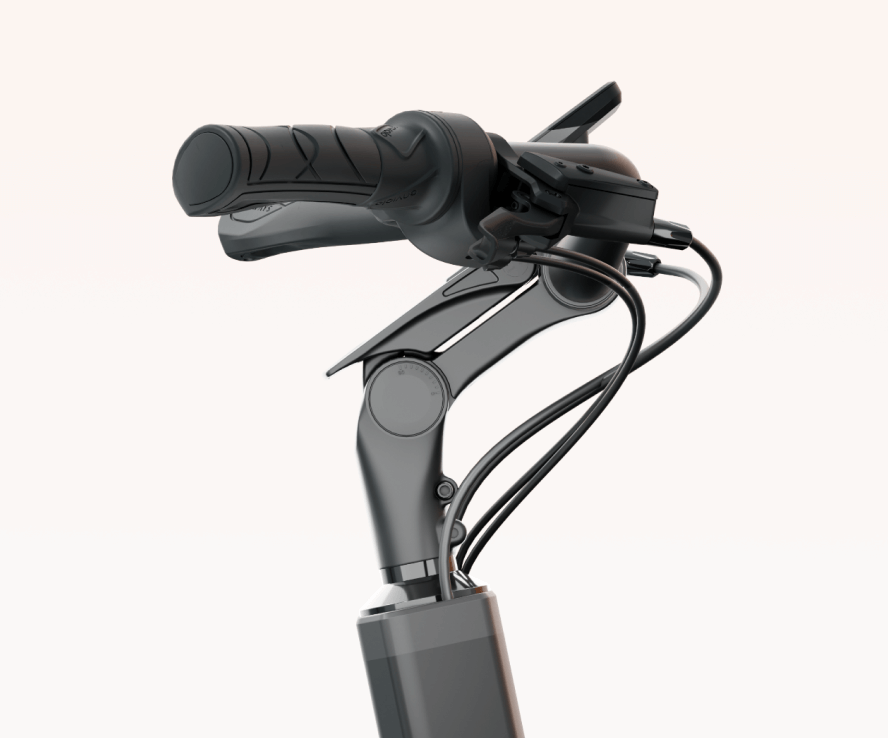

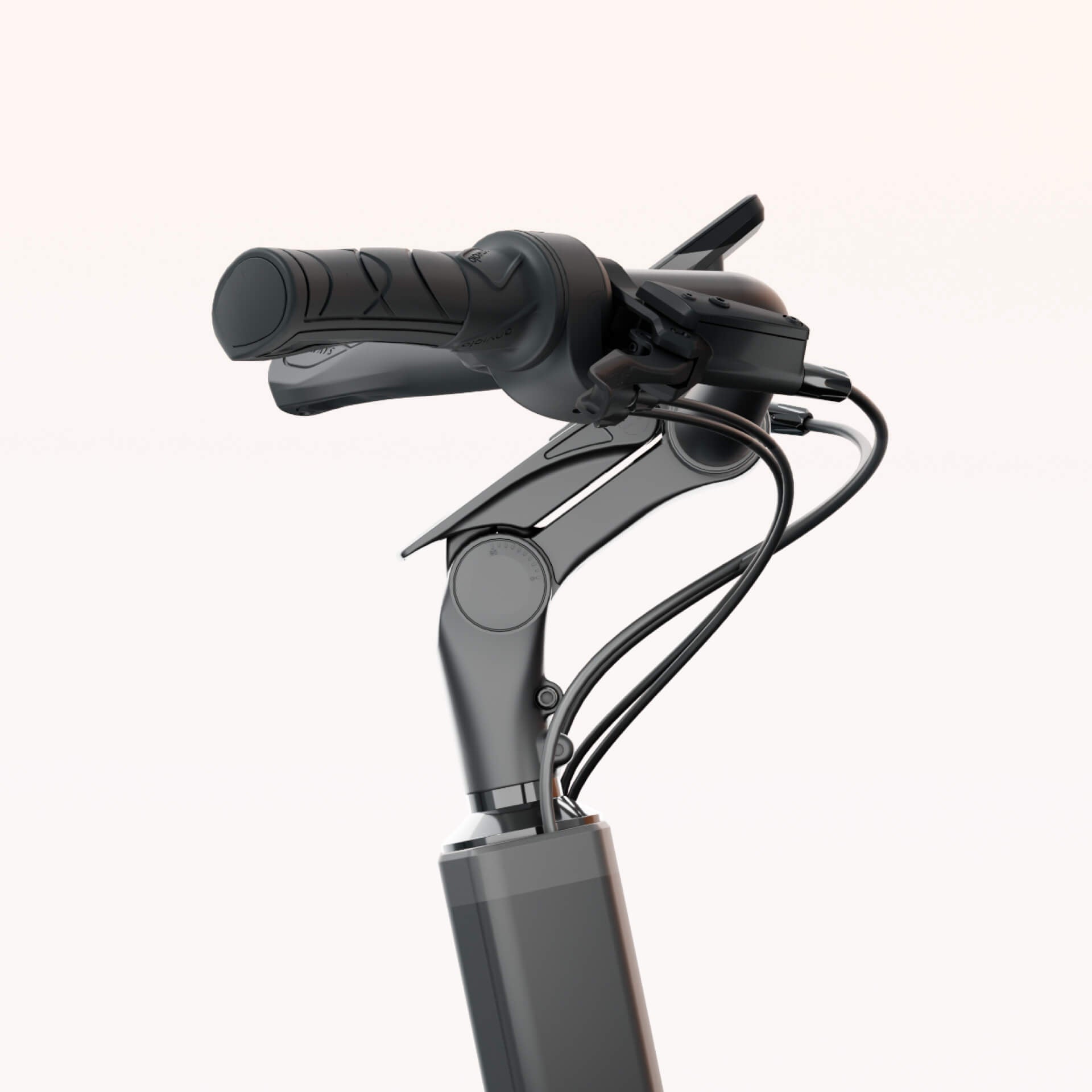

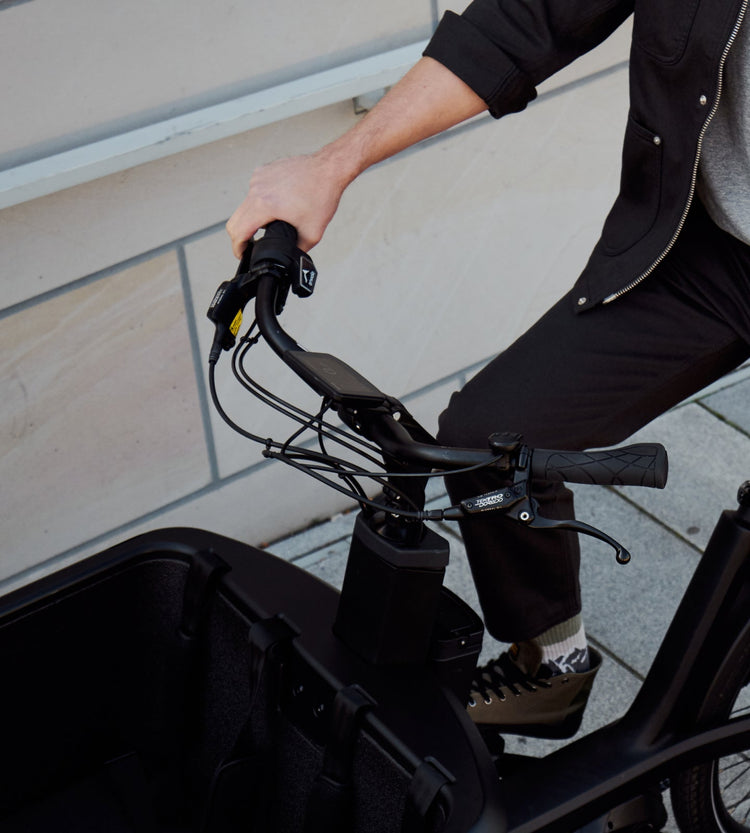

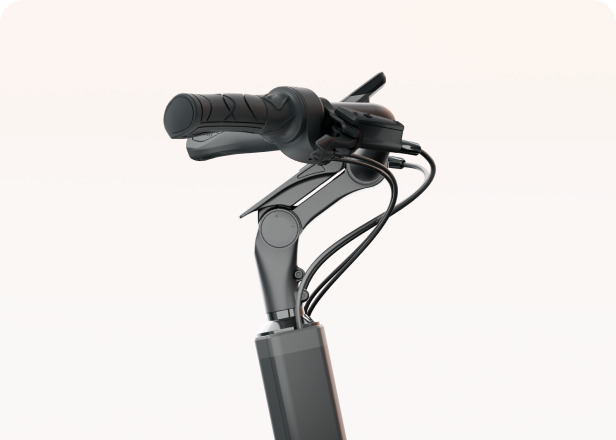

The height and angle of the handlebar can be switched up for optimized rider positioning.

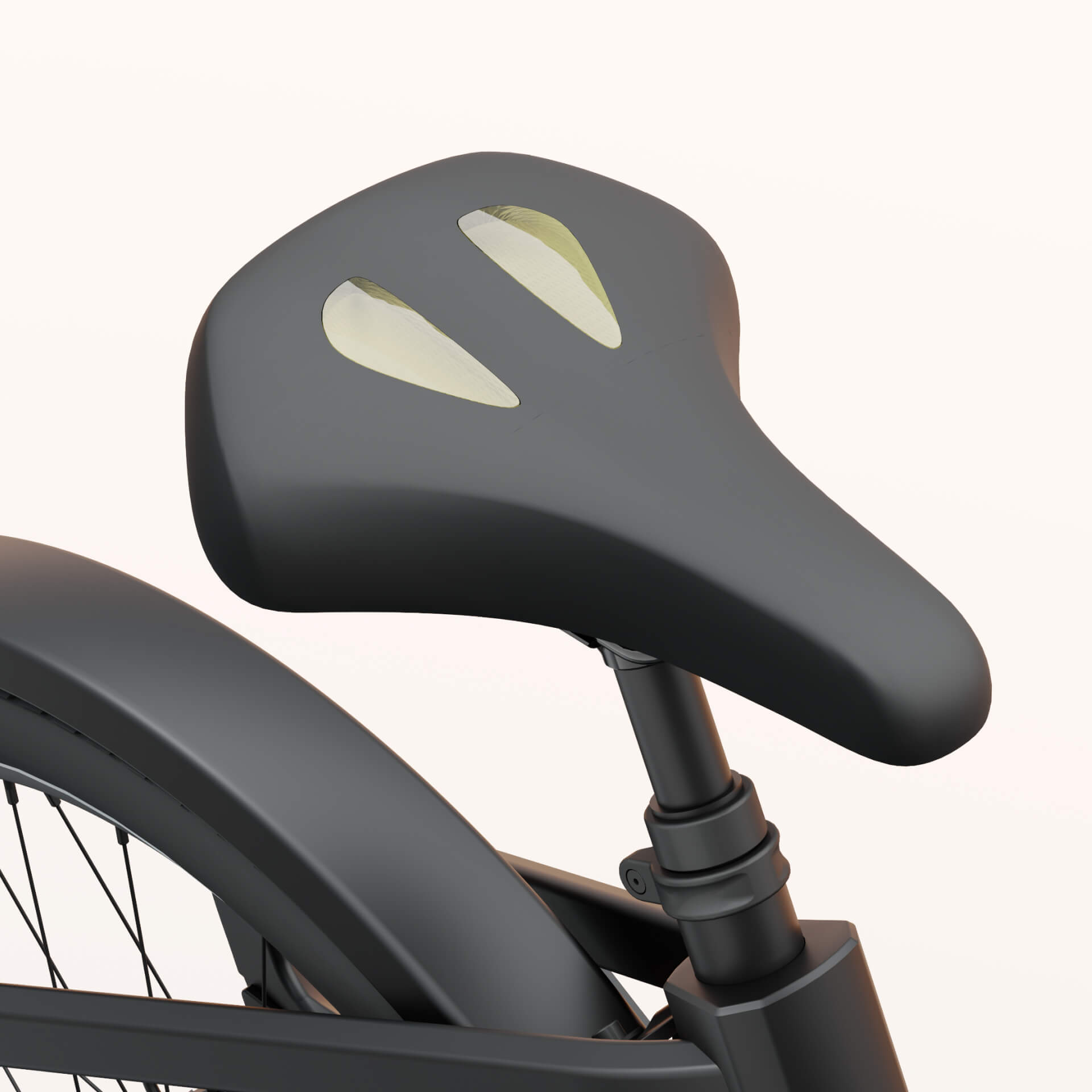

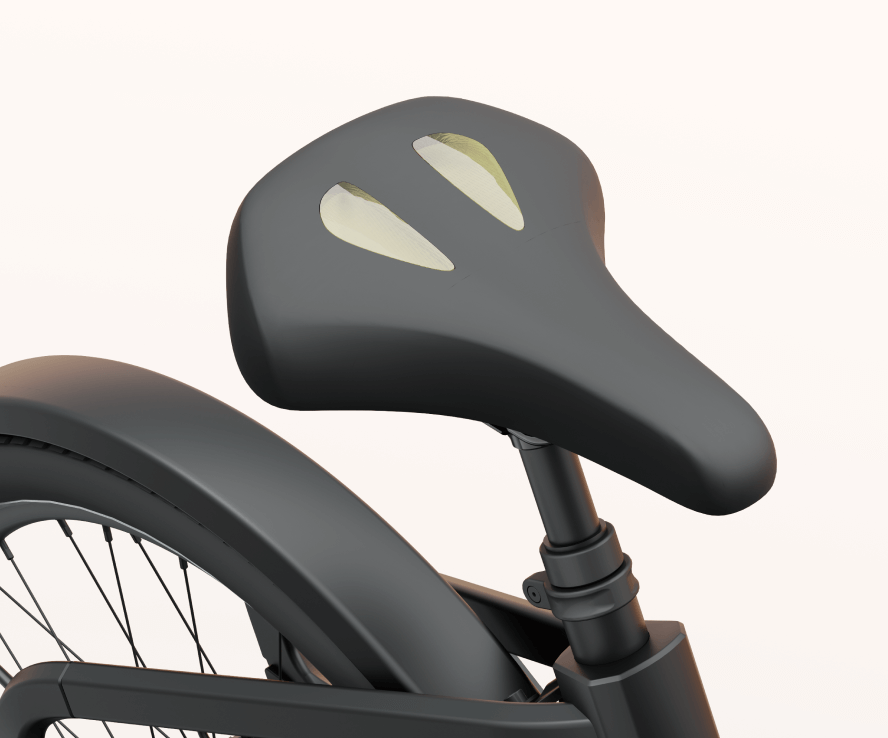

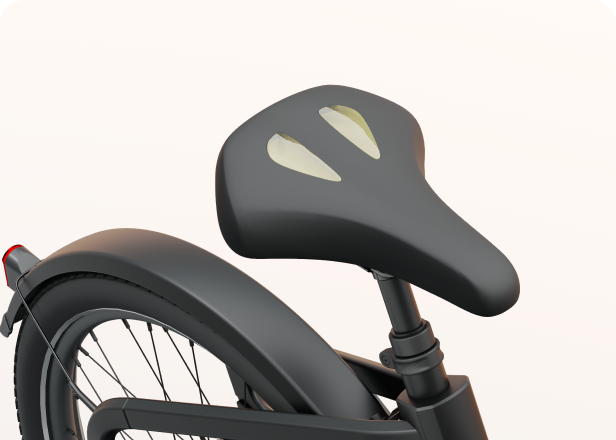

Royalgel™ technology gives cushioned comfort and minimized pressure.

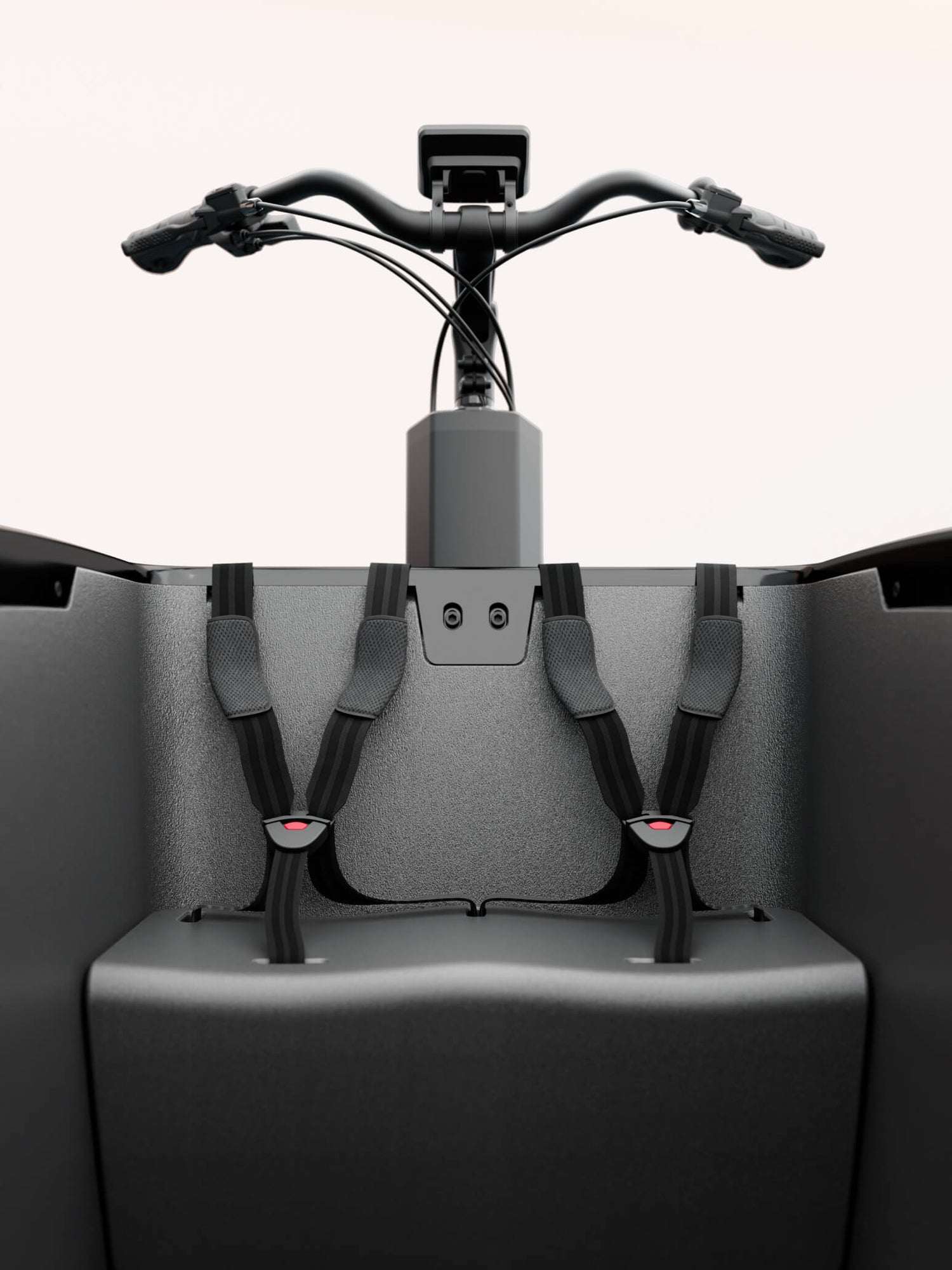

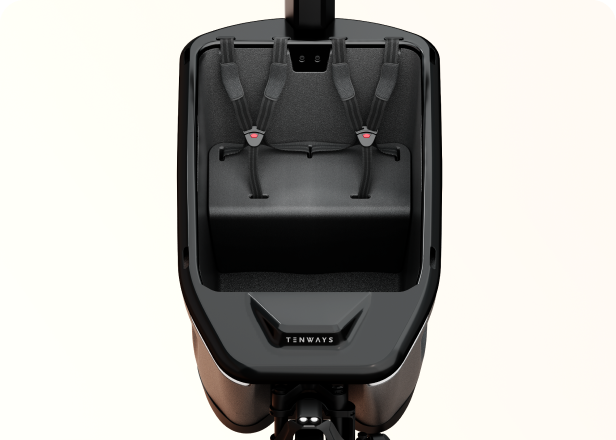

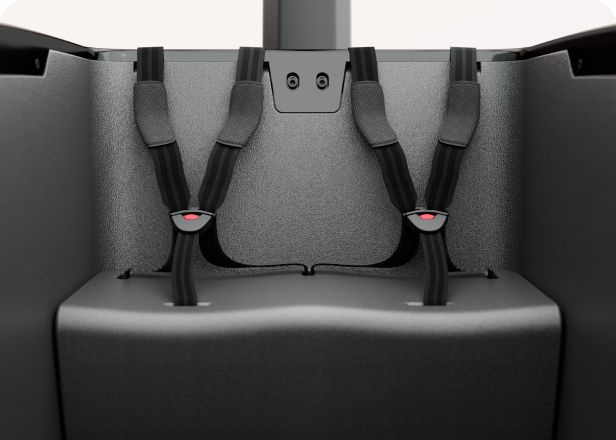

Spacious and safe for any load, 800-liter capacity cargo box comes with 2 sets of 5-point safety belts. Fully biodegradable and environmentally friendly.

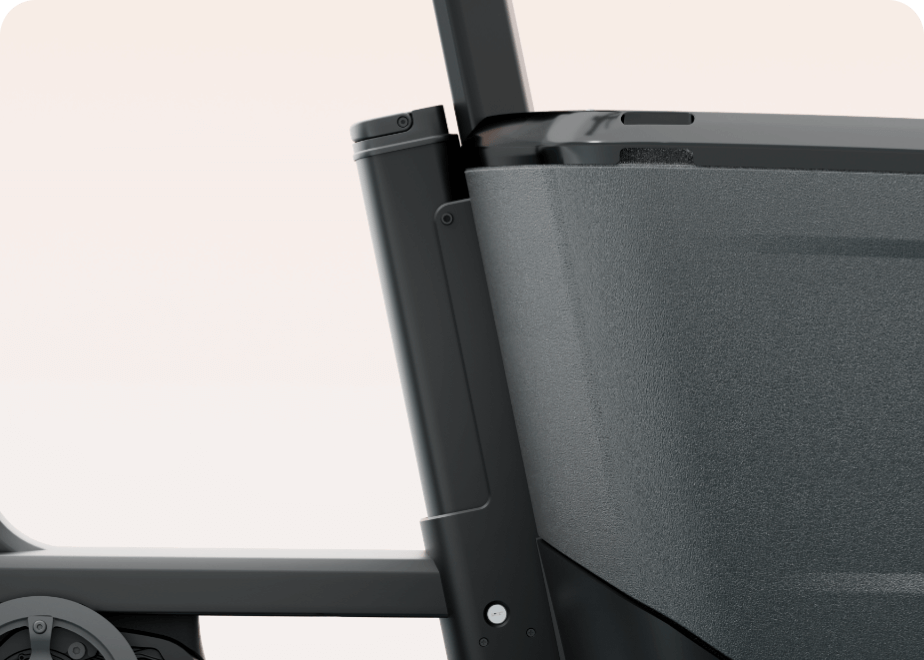

An extra-large battery that is easy to carry. Comes with a built-in lock for added security.

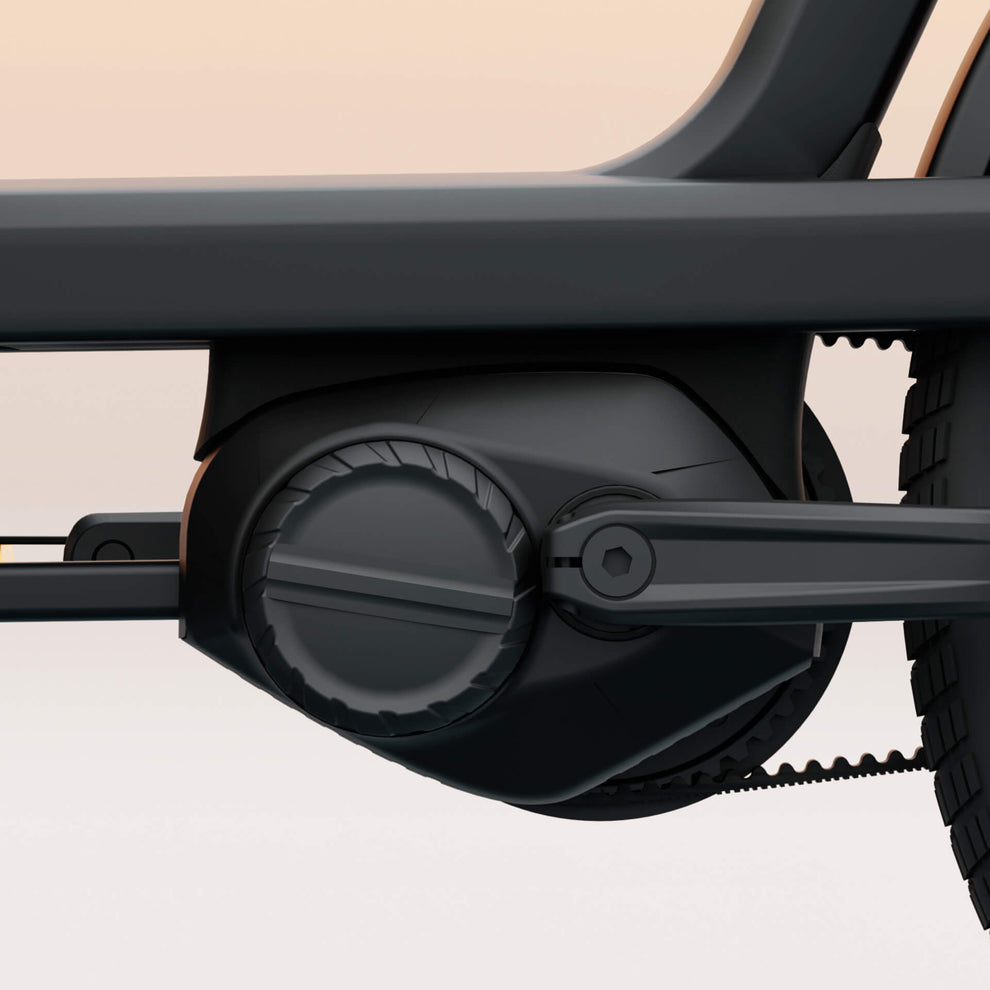

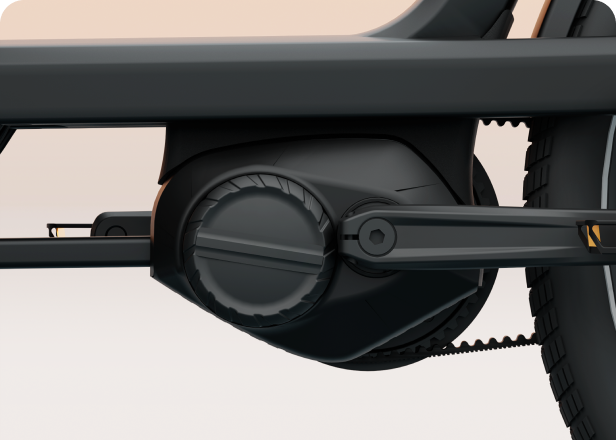

High-performance power that beautifully transmits to smooth, confident urban rides.
Great for safe cruising on urban and light gravel terrain.
Ride Smart.
Ride Connected.

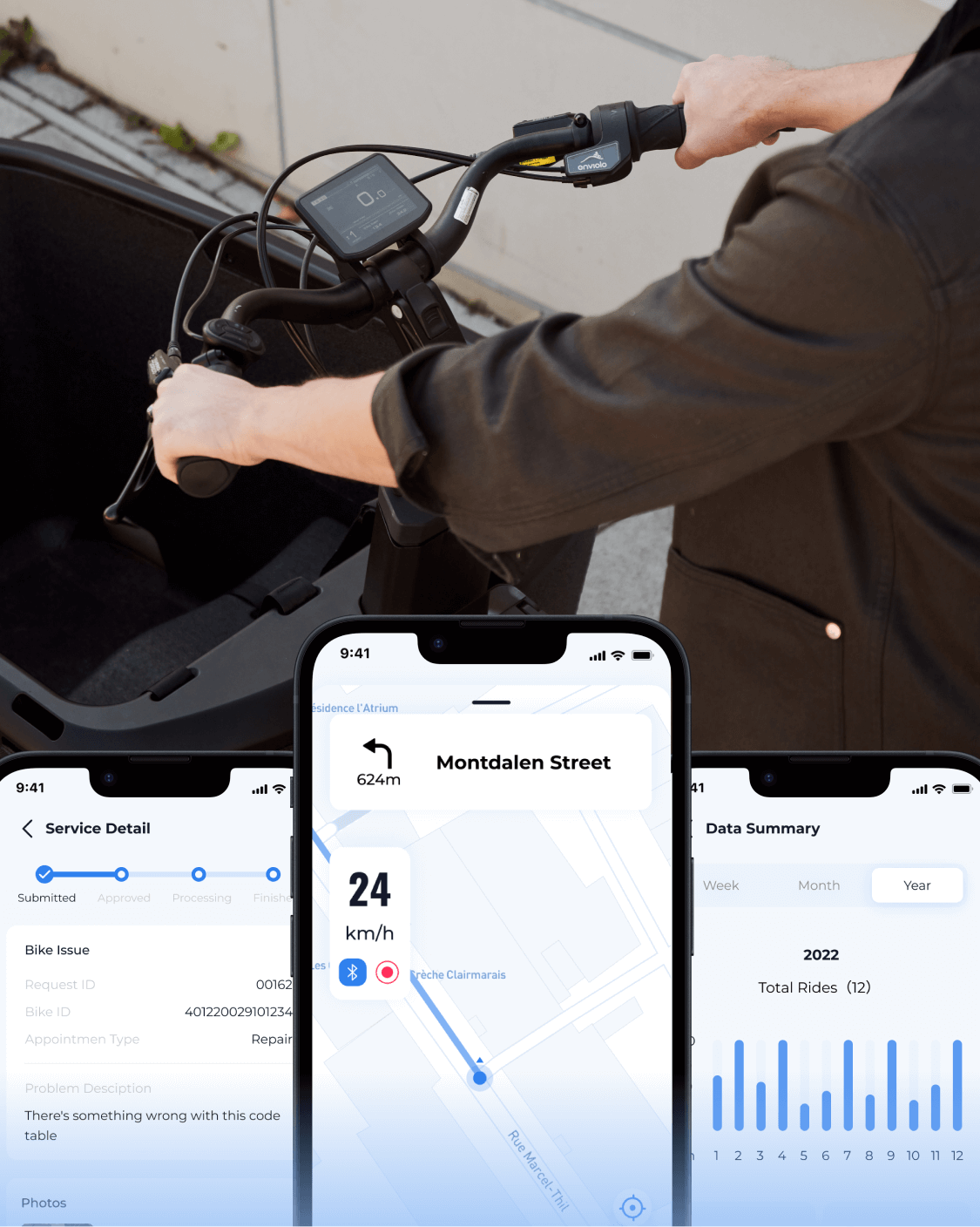

Connect with the TENWAYS app to record, track, navigate, and communicate. Your e-bike’s perfect companion, providing real-time, seamless data.
Connect with the TENWAYS App to record your rides in real time and track your stats.

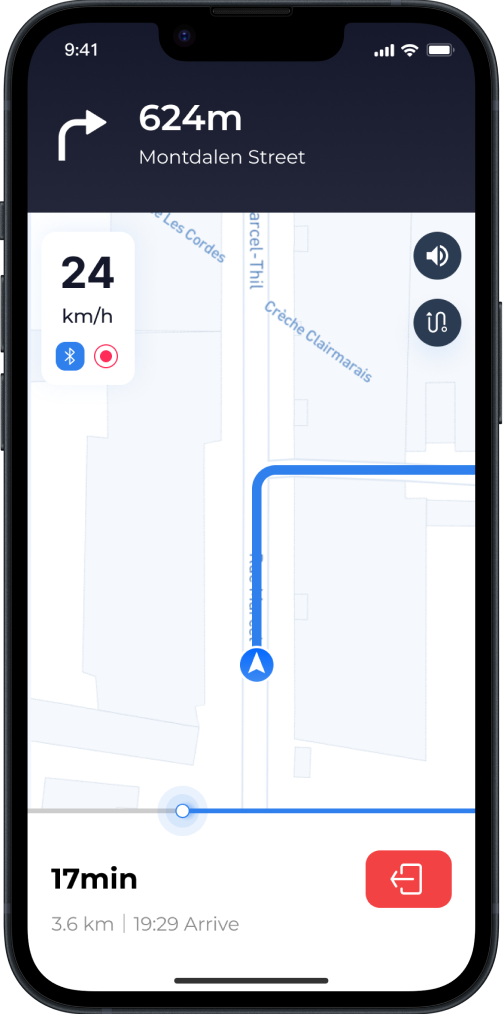

Cast directions straight to the integrated LCD display for seamless navigation.
Communicate with our team directly through the integrated help center.
Bafang M600 Cargo (250W Power, 100 Nm Max. Torque)
Integrated Torque Sensor for the Mid-drive Motor
Integrated Controller of the Mid-drive Motor

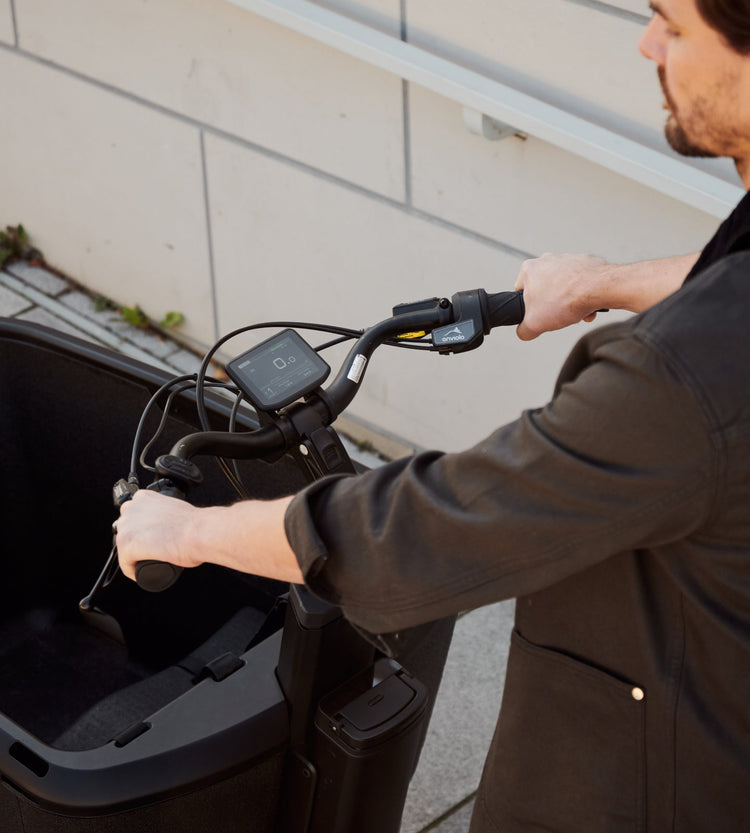

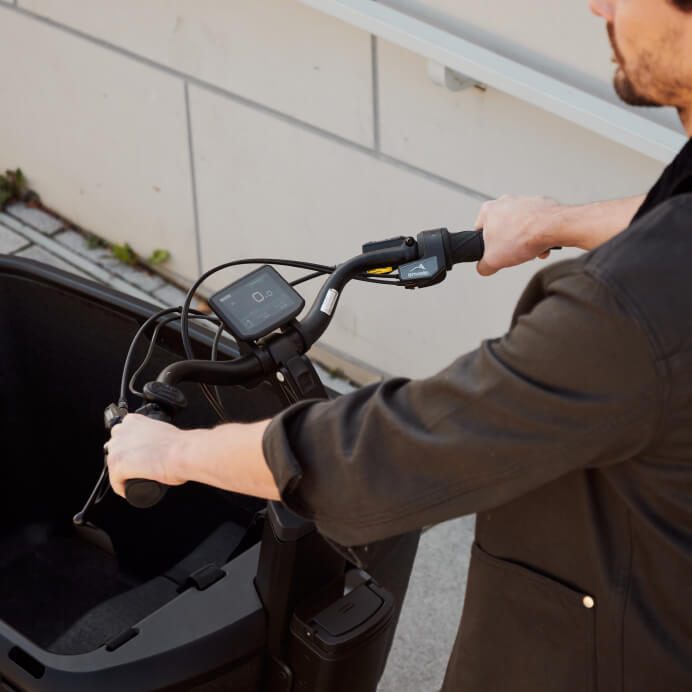

TFT LCD Color Display
960Wh (48V, 20Ah) Lithium-ion Battery with LG Cells
StVZO-compliant
20 mph*
*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
Up to 56 miles*
*Results of single battery charge range tests with an empty cargo box. Actual performance will vary depending on load, PAS levels, temperature, road conditions, rider's weight, etc.
Suitable for Climbing Slopes*
*The actual performance would depend on the rider's physical strength.
6061 Aluminium Frame
Aluminium Alloy Crankset
6061 Aluminium Rims

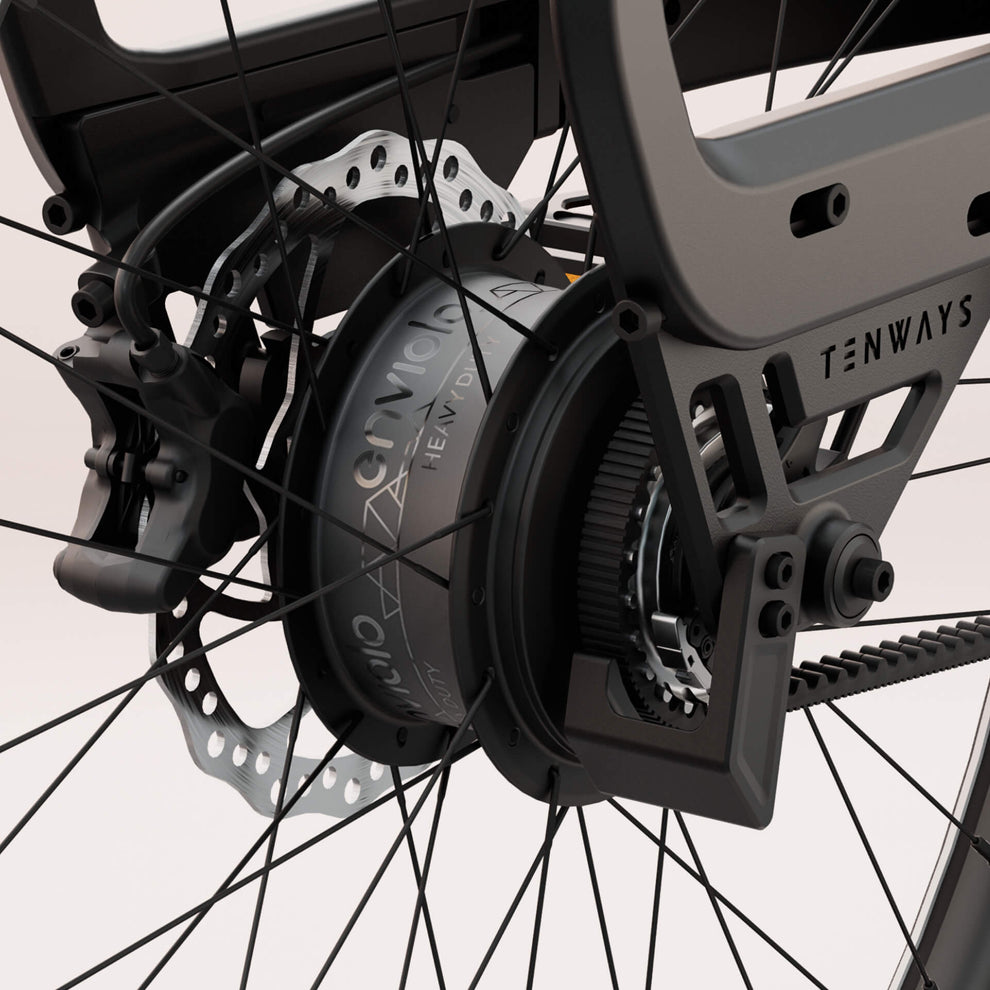

Enviolo Stepless Shifting Hub

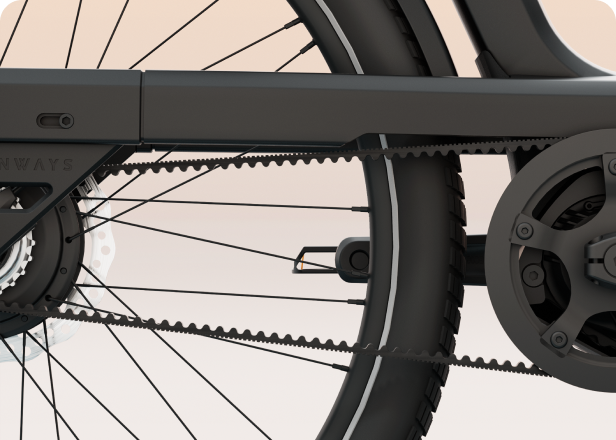

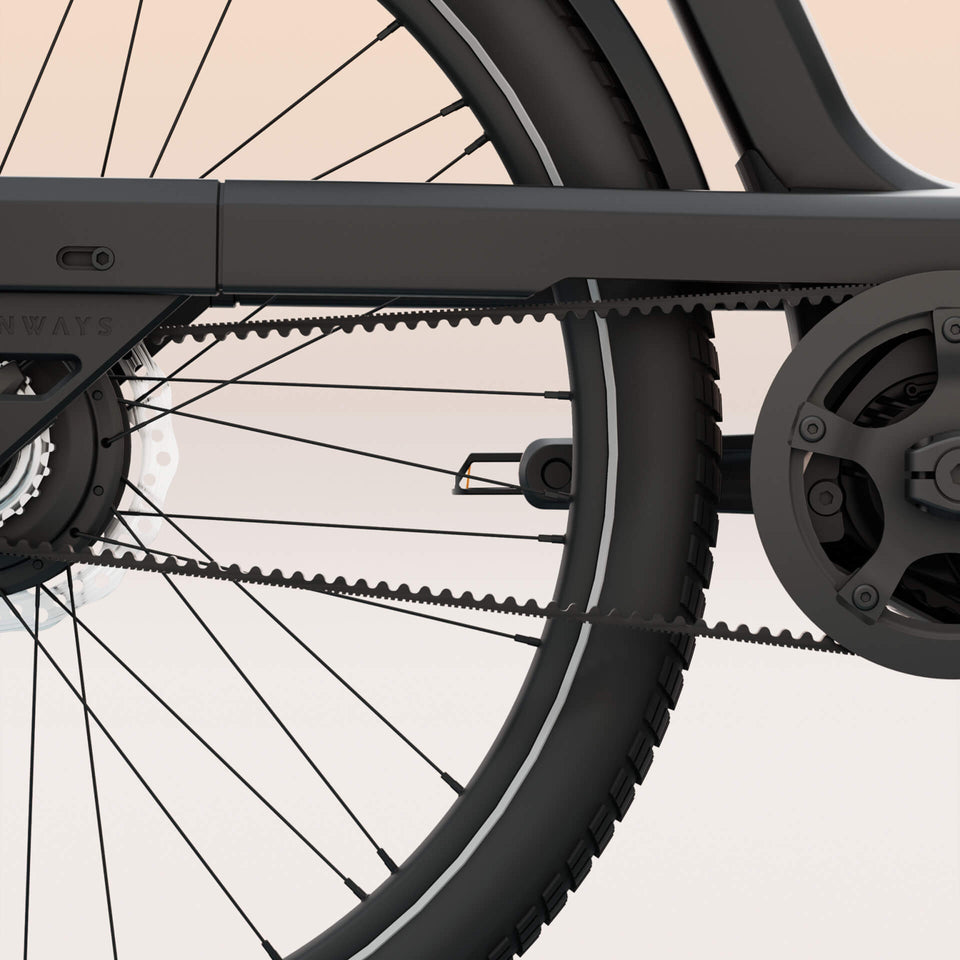

Gates CDX Carbon Belt
SR SUNTOUR Suspension Front Fork

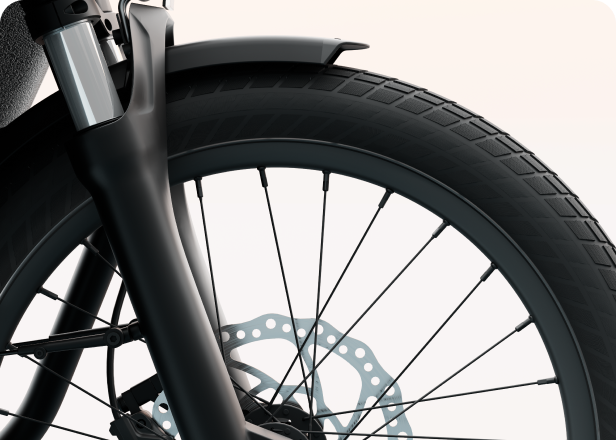

SCHWALBE 20''*2.15/26''*2.15 Puncture-proof Tires
Tektro Four-piston Hydraulic Disc Brakes
Fully-concealed Bottom Bracket
Selle Royal Saddle
Net weight: 123 lbs (excluding all accessories)
Full weight: 128 lbs (including all accessories)
Permissible Max. Weight: 550 lbs
*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.

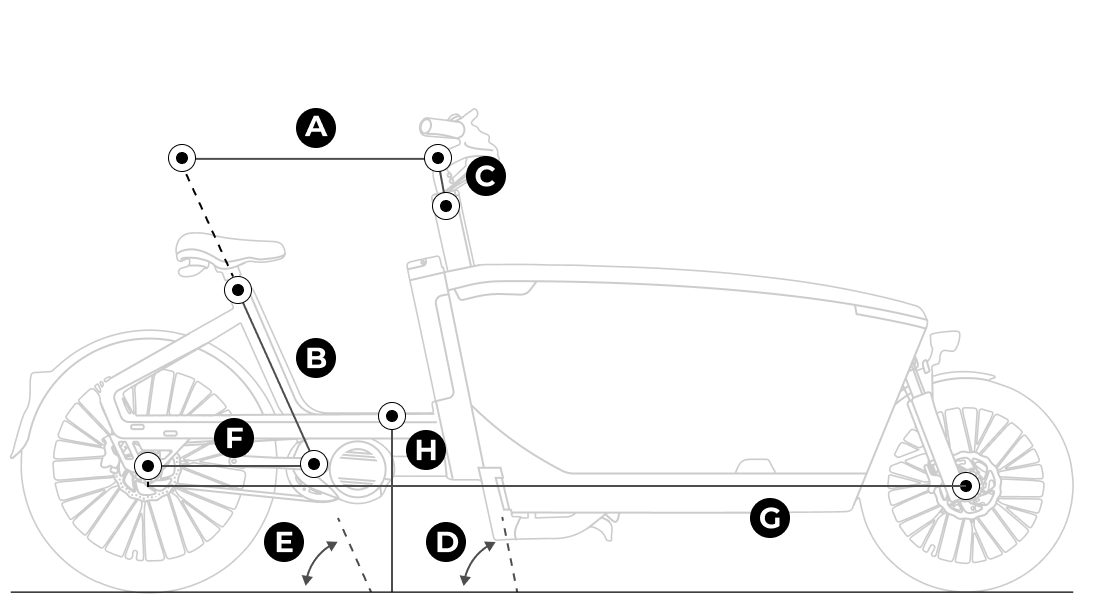

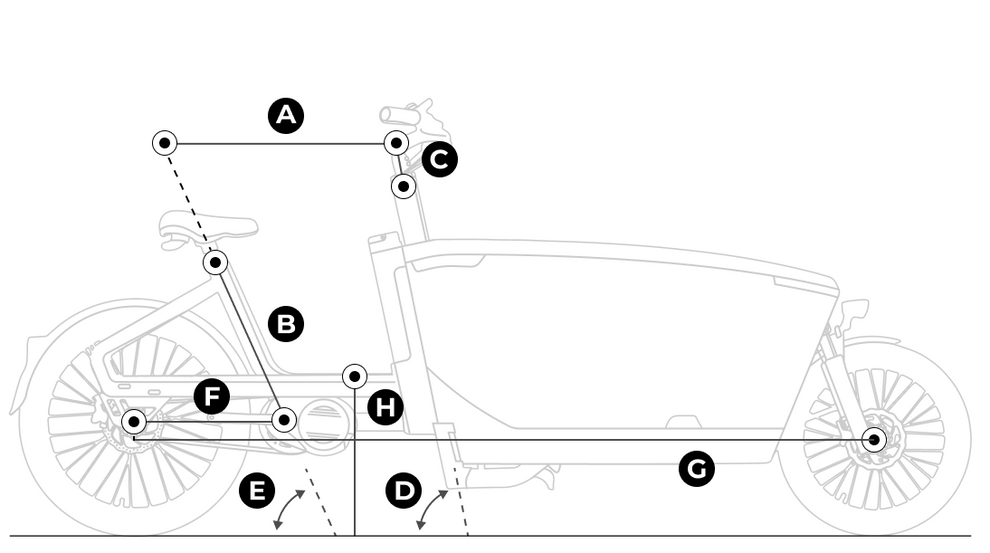

| SIZE (mm) | SYMBOL | |
| Effective top tube | A | 653.5 |
| Seat tube length | B | 485 |
| Head tube | C | 85 |
| Steering angle | D | 64.4 |
| Seat tube angle | E | 69.1 |
| Chainstay | F | 436 |
| Wheelbase | G | 2030 |
| Standover | H | 443 |

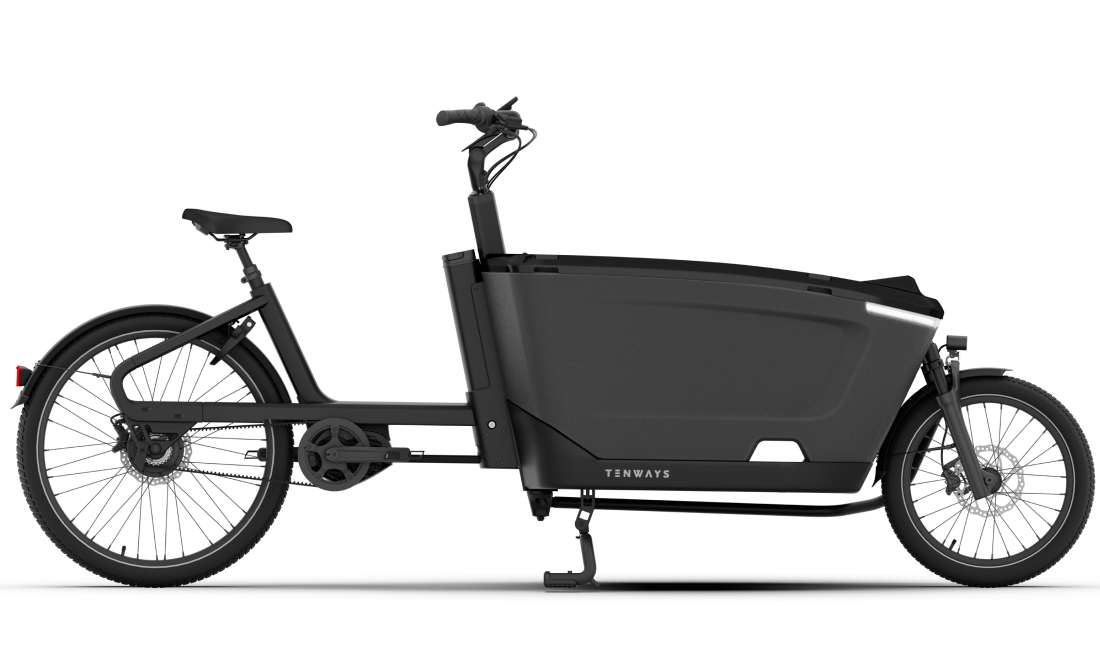

Cargo bike Size: 2655.9*1304.8*685.9 mm (L*H*W)
Cargo box size: 1125.5*547*562.5 mm (L*H*W)
CARGO ONE seat size: 532*284*247 mm (L*H*W)
When the cargo box is empty, the range is 37 miles-56 miles*.
No, the CARGO ONE does not come with a frame lock. You would have to buy it separately.
